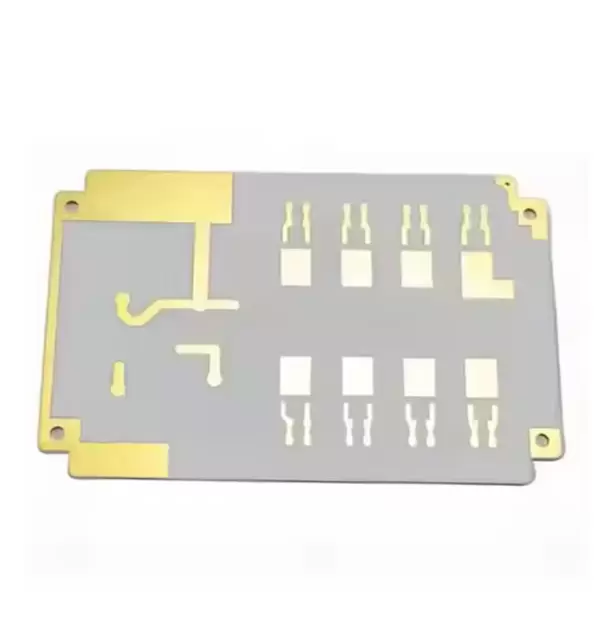

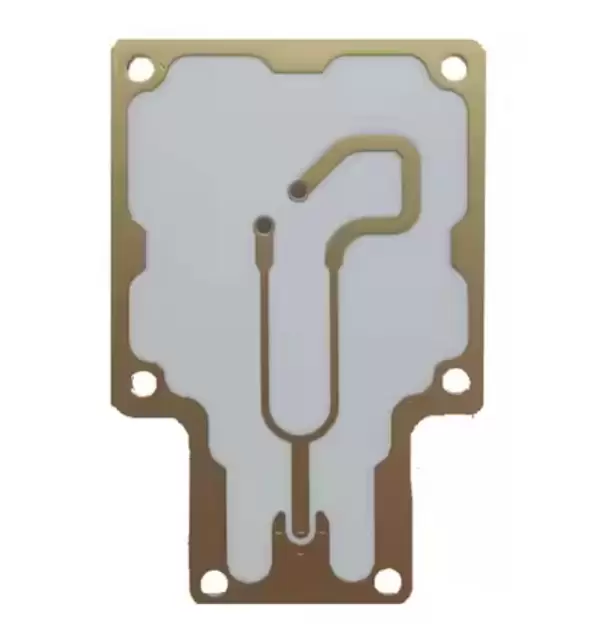

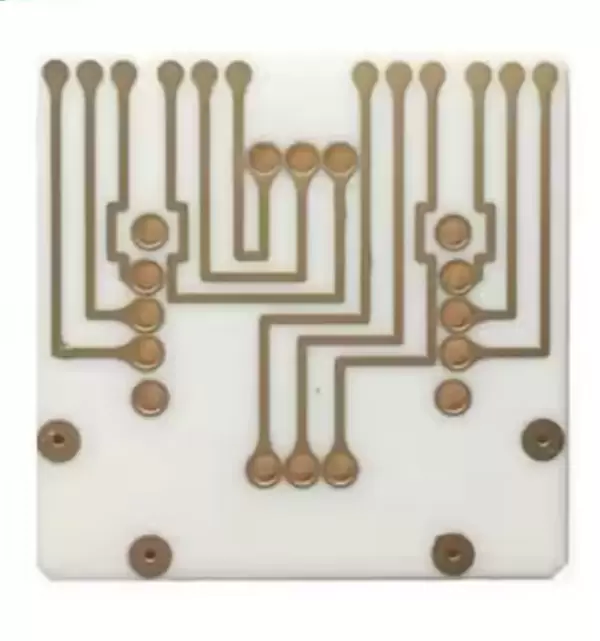

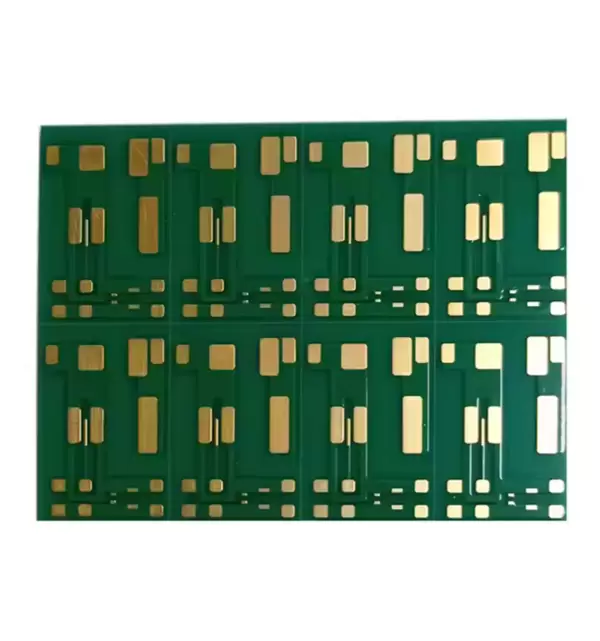

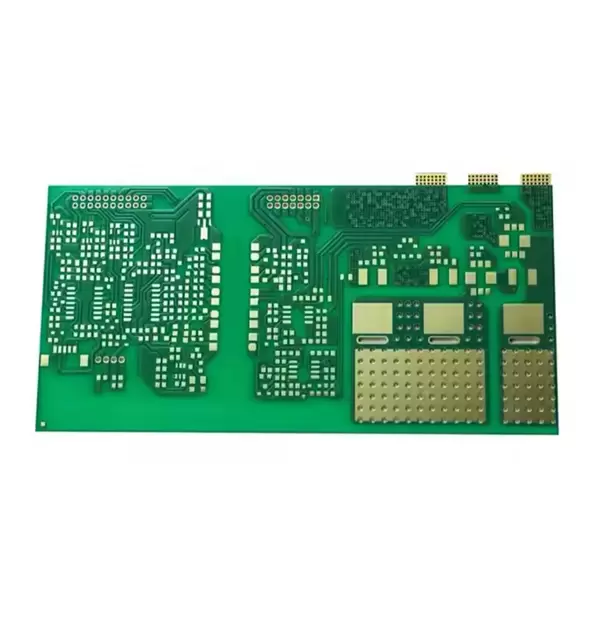

Ceramic PCB

The Ultimate Thermal & High-Frequency Solution for Extreme Electronics
Ceramic Printed Circuit Boards (PCBs) leverage advanced substrates like Alumina (Al鈧侽鈧), Aluminum Nitride (AlN), or Silicon Carbide (SiC) to outperform traditional FR-4 boards in high-power, high-temperature, and mission-critical applications. With thermal conductivity up to 220 W/m路K (vs. FR-4鈥檚 0.25 W/m路K) and operational resilience from -55掳C to 800掳C+, they enable breakthroughs in aerospace, EV, 5G, and industrial systems
24-hour Quote
Manufacturing Capacity and Specifications
Base Material
Al2O3, AlN, Si3N4
Board Thickness
0.25mm ~ 1.0mm
(0.25mm, 0.38mm, 0.50mm, 0.63mm, 0.80mm, 1.00mm)
Copper Thickness
DPC: 10渭m - 100渭m
DBC: 100渭m - 600渭m
AMB: 150渭m - 800渭m
Min. Line Width
DPC: 20渭m - 50渭m
DBC: 150渭m - 300渭m
AMB: 200渭m - 500渭m
Min. Hole Size
DPC: 鈮0.15mm
DBC: 鈮0.25mm
AMB: 鈮0.50mm
Min. Line Spacing
DPC: 20渭m - 50渭m
DBC: 150渭m - 300渭m
AMB: 200渭m - 500渭m
Surface Finish
ENIG(Prefered), Ni/Au Plating, OSP, Immersion Silver
Solder Mask
Polyimide, Epoxy modified acrylic
Board Size
Optional
Silkscreen Color

Optional(W1hite, Black, etc)



High-Performance Substrates for Power Electronics, RF Modules, and Industrial Applications

Ceramic PCB is widely used in electronic systems that require high reliability, thermal stability, and long-term performance under demanding conditions. Conventional FR-4 boards often cannot meet the electrical, thermal, and structural requirements of high-power circuits, high-frequency RF modules, or compact, high-density layouts. Ceramic PCB, including DBC ceramic boards, Aluminum Nitride (AlN) substrate PCB, and Silicon Carbide (SiC) PCB, provides stable electrical performance, high thermal conductivity, and mechanical integrity. These substrates are applied in a wide range of applications, including EV IGBT modules, industrial inverters, RF front-end modules for 5G communication, battery management units, precision laser systems, aerospace avionics, and mission-critical control electronics.


Ceramic PCB materials are selected based on the electrical load, thermal management needs, and environmental conditions of the system. Alumina (Al鈧侽鈧) ceramic boards are widely used in industrial electronics, providing reliable performance, mature manufacturing, and cost efficiency. Aluminum Nitride (AlN) substrate boards support higher thermal conductivity and integration density, suitable for high-power inverters, compact power modules, thermally sensitive circuits, and RF ceramic boards. Silicon Carbide (SiC) boards are applied in high-voltage systems, extreme temperature environments, aerospace modules, and specialized industrial applications where conventional materials cannot provide sufficient thermal or electrical stability. Proper material selection ensures that the ceramic substrate maintains performance over wide temperature ranges and continuous operation.


Manufacturing methods further define the performance and suitability of ceramic PCB solutions. Direct Bonded Copper (DBC) ceramic PCB is widely applied in power electronics modules, high-current inverters, and IGBT boards, where thick copper layers provide thermal management and reliable electrical performance. Direct Plated Copper (DPC) ceramic boards are used in fine-line RF ceramic PCBs, compact high-frequency boards, and communication modules where precision and high circuit density are critical. Active Metal Brazing (AMB) provides strong bonding for ceramic substrates exposed to mechanical or thermal stress, commonly used in aerospace electronics, industrial laser systems, and other high-reliability applications. The combination of material and fabrication process ensures stable operation for high-power, high-frequency, and compact electronic designs.


Key properties and customization options include:

1. Material options: Alumina, Aluminum Nitride, Silicon Carbide ceramic boards tailored to power electronics, RF modules, and aerospace applications

2. Copper thickness, circuit pattern, and multi-layer structures optimized for high-density, high-power, or high-frequency designs

3. Substrate dimensions and layouts suitable for compact modules, industrial automation equipment, and precision laser systems

4. Support from prototyping to volume production for automotive, aerospace, industrial, and communication systems


Ceramic PCB is applied across multiple industries that require consistent performance and reliability. In power electronics, it is used for EV IGBT modules, inverters, battery management units, and high-power converters. In RF and communication systems, it supports RF front-end modules, antennas, and high-frequency transmission boards. Industrial applications include laser systems, automation control units, robotics, and precision sensing equipment. Aerospace and defense applications rely on ceramic PCB for avionics, radar modules, mission-critical control electronics, and high-temperature or high-vibration environments. Ceramic PCB ensures reliable thermal management, long-term structural integrity, and consistent electrical performance in all these scenarios.


Selecting the right ceramic PCB requires evaluating application type, circuit complexity, operating environment, expected service life, and manufacturing feasibility. Properly chosen substrates integrate seamlessly into system design, providing stable performance under high current, high voltage, or high-frequency operation while maintaining thermal stability and structural integrity. The combination of material selection, manufacturing process, and customization ensures that ceramic PCB solutions meet the exact requirements of EV modules, industrial inverters, RF communication boards, aerospace control electronics, and other demanding applications.


Why Ceramic Dominates Extreme Environments: 6 Core Advantages
Unrivaled Thermal Management
Extreme-Temperature Stability
Superior High-Frequency Performance
Ultra-High Density & Miniaturization
Zero Degradation in Harsh Conditions
High Voltage/Current Reliability
Precision Engineering: Ceramic PCB Technologies Compared
ProcessKey FeaturesBest ForLimitations
DPCLaser-drilled 50-渭m vias;Cudirect-plated;< 0.15-mm substratesHigh-precisionRF/AerospaceHigher cost; laser-only cutting
DBC150-300-um Cu fused to ceramic; high power handlingEV power controllers,IGBTSLimited fine-line resolution
HTCC1300掳C+ co-firing; tungsten/molybdenum tracesNuclear/space systemsUltra-high cost; material shrinkage
LTCC850掳C processing; integrated passivesRF filters, LED arraysLower thermal conductivity
Manufacturing Equipment at BENLIDA
Manufacturing Equipment at BENLIDA
contains the mostadvanced equipment required for the manufacture and assembly of your PCBs. Whether you'relooking for standard quick turn PCBs or boards with the tightest tolerances, made from exoticmetals, there's a reason Sierra Circuits leads the industry in quality and performance.
